AC (Alternating Current) and DC (Direct Current) motors are two types of electric motors that convert electrical energy into mechanical energy, differing primarily in the type of current they use: AC motors use alternating current, while DC motors use direct current. The AC motor can be used pumps, fans, industrial machines, compressors, because it is used when constant speed is needed. DC motor is in vehichles, robotics, conveyor belts, toys, drones, because it is used where variable speed and high torque is needed.



Diffence between AC versus DC Motor

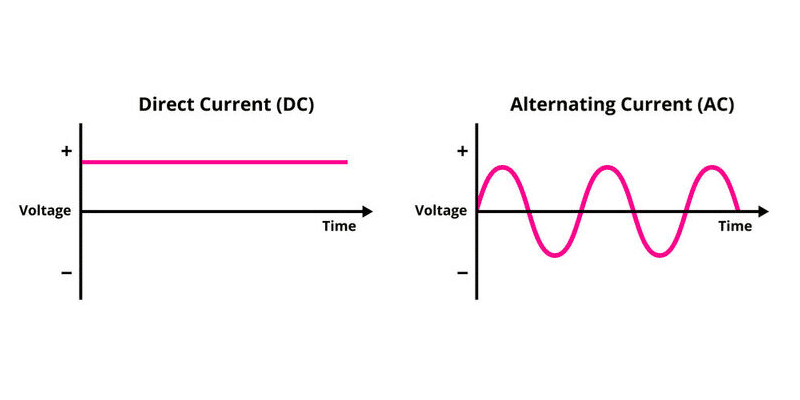

1. Power source: AC motor uses alternating current (AC) as a power source. DC motor uses Direct current (DC).

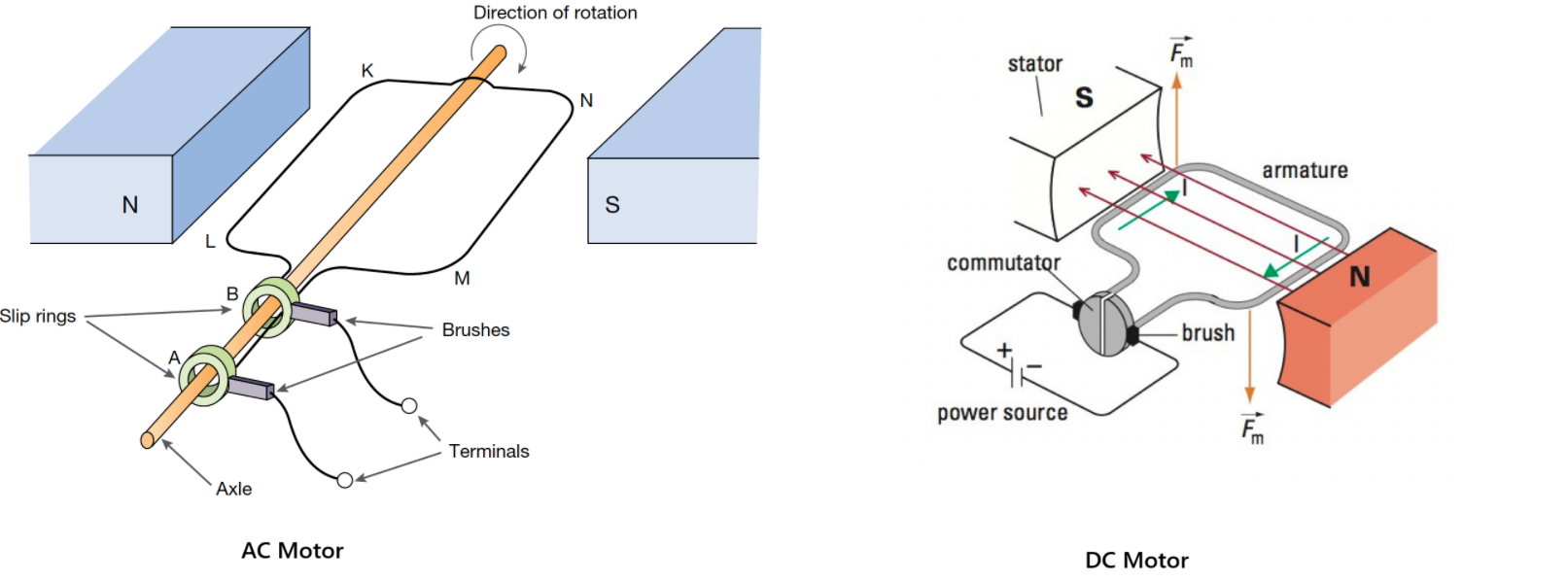

2. Construction: AC has no brushes (induction type). DC has brushes & commutator.
3. Speed control: AC needs frequency based VFD. DC needs easier speed control that is voltage based.
4. Starting torque: AC is usually lower. DC is higher
5. maintenance: AC has low maintenance since it is brushless. DC has higher maintenance because the brush will wear out.
6. Efficiency: AC is higher for larger systems. DC is lower due to brush loss.

Advantages & Disadvantages

1. With AC motors, it is cheaper for high-power applicatons
2. and has low maintenance, but it only has fixed speeds and cannot be changed.
3. DC motors are used for variable speed and high torque applications. It also has precise control, but it requires more maintenance due to the wear on the brush.
